OKUMA
MULTUS B200II
OKUMA
MULTUS B200II
Product description
The MULTUS B200II, equipped with a B-axis head, is the ultimate fusion of turn-mill operations, with lathe, vertical, or horizontal machining center and material-handling operations consolidated into one 6- to 8-inch chuck class machine. This multitasking CNC machine performs process-intensive machining for shorter deliveries while making more effective use of floor space. With fewer setups, work in process is drastically reduced and machine utilization is greatly increased.
The MULTUS B200II has a 225° B-axis range with 12,000 rpm H1-milling spindle (opt. 20,000 rpm) with dual function (L/M). The H-1 dual function spindle head utilizes CAPTO-C6 tooling and has a 16.2/10.8 hp PREX milling motor spindle. The base offering has 40-tool ATC, with a 60-tool ATC available. The H1-turret has a 0.001-degree B-axis and compound-motion Y-axis for machining flexibility. The main spindle is equipped with a full-contouring C-axis.
Thermo-Friendly Construction assures high accuracy, even in the most complex applications, and the optional W version with sub-spindle allows a part to be handed from one spindle to the other. The MULTUS B200II is equipped with our OSP-P300 control that is designed with ease of operation in mind. With single-mode operation and superior graphics, novice operators, as well as professional machinists, will experience a smoother, more effective way of producing parts.
Industries
Aerospace
Automotive
Energy
Fluid control
Heavy Duty
Medical
Molds & Dies
Others
Key product information
Max Turning Diameter (in)Max Turning Diameter (mm)
Ø23.62 Ø600
Spindle Nose Type
Ø140 flat [JIS A2-6]
Speed Range (min-1)
50~6,000 [45~5,000]
Standard Power (20 min/cont) (hp)Standard Power (20 min/cont) (kW)
PREX 15/10 PREX 11/7.5
Rapid Traverse X,Z/Y (ipm)Rapid Traverse X,Z/Y (m/min)
1,575/1,024 40/26
Related products
OKUMA
See product
MB-4000H
MB-4000H
OKUMA
See product
MB-5000HII
MB-5000HII
OKUMA
See product
MA-500HII
MA-500HII
OKUMA
See product
MA-600HIII
MA-600HIII
OKUMA
See product
MA-8000H
MA-8000H
OKUMA
See product
MB-10000H
MB-10000H
OKUMA
See product
MA-12500H
MA-12500H
OKUMA
See product

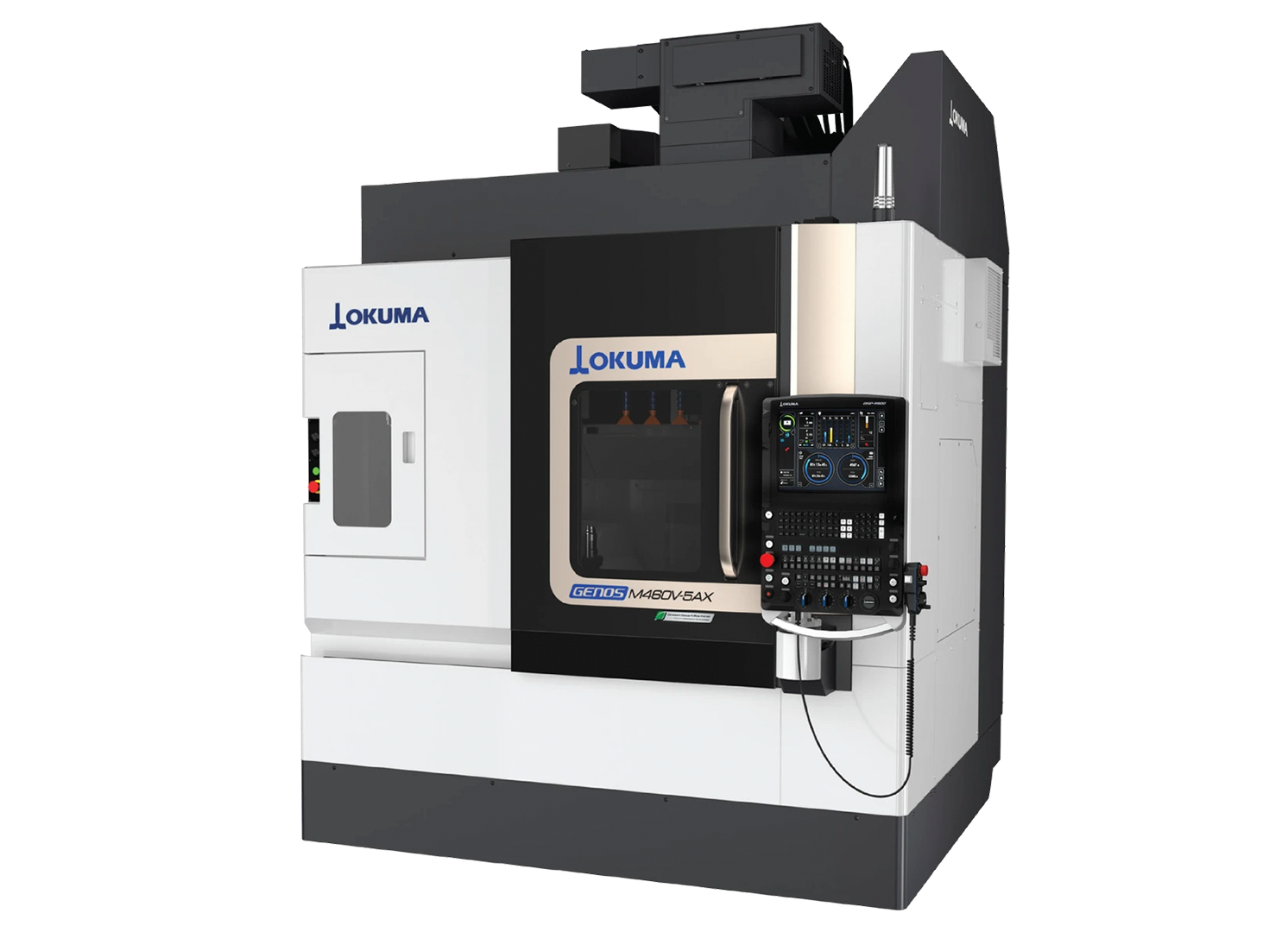

GENOS M460V-5AX
